Automatic carbon steel pipe making machine
GEIT manufacture various model of carbon steel pipe making machine with high speed, superior mechanical properties and quality based on application of advance weld technology. It composes of single or double decoiler, leveling machine, coil accumulator, coiler feeds, shearing and butt weld device, tube welding section, flying saw and run-out table.
  • Description
  • Contact us

Automatic carbon steel pipe making machine

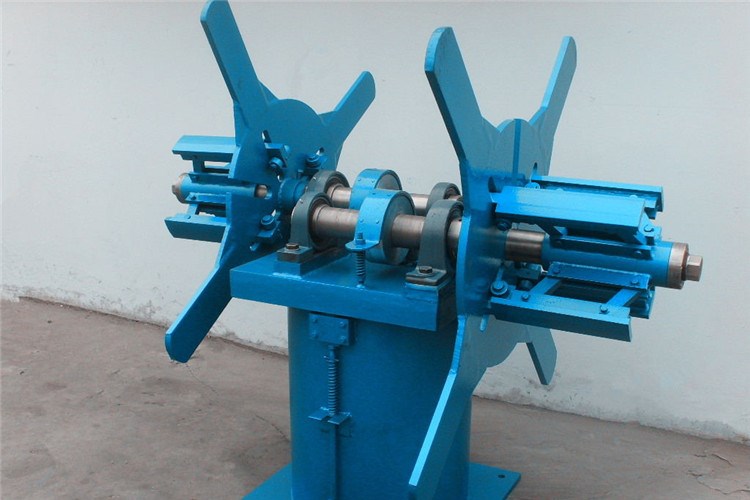

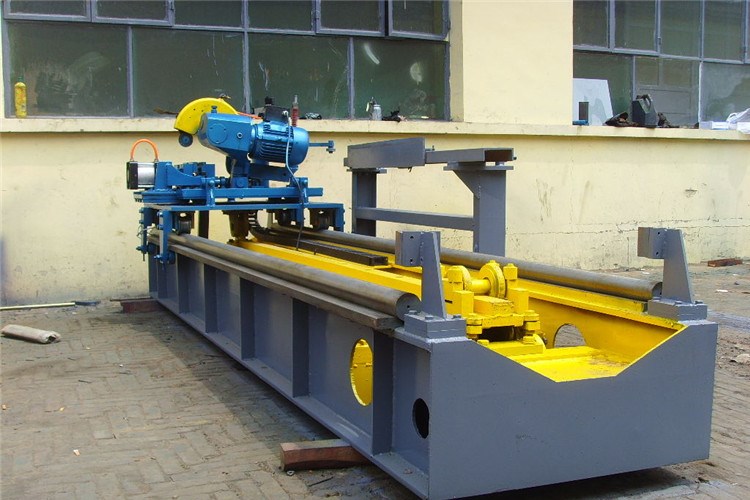

GEIT manufacture various model of carbon steel pipe making machine with high speed, superior mechanical properties and quality based on application of advance weld technology. This pipe making machine is widely used for producing tubes for heat exchanger, refrigerator, frame of car, bicycle, fitness equipment, furniture, cooling machine, petrol transmission, construction industry, etc. It composes of single or double decoiler, leveling machine, coil accumulator, coiler feeds, shearing and butt weld device, tube welding section, flying saw and run-out table.

Automatic carbon steel pipe making machine

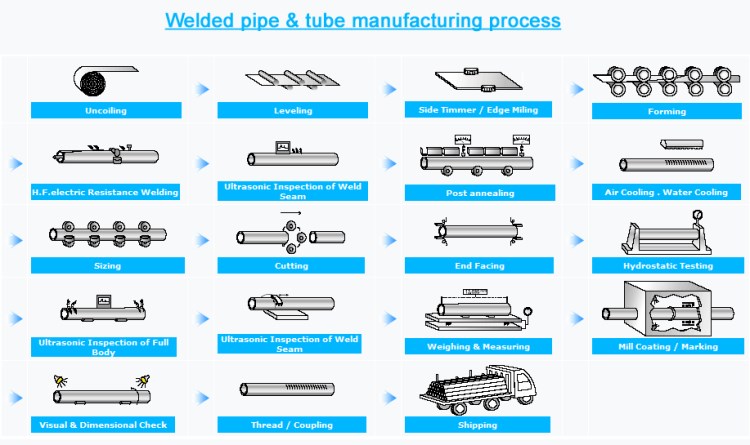

Automatic carbon steel pipe making machine working flow:




Technical parameters of automatic carbon steel pipe making machine:


Model/spec

HG32

HG50

HG76

HG127

Wall thickness

0.4-2.5mm

0.5-3mm

1.0-3.5mm

1.0-5.0mm

Pipe diameter

10-45mm

10-60mm

20-89

20-127

Round pipe

Max Φ45mm
Min Φ10mm

Max Φ60mm
Min Φ10mm

Max Φ90mm
Min Φ20mm

Max Φ127mm
Min Φ20mm

Square pipe

Max Φ35×35mm
Min Φ10×10mm

Max Φ47×47mm
Min Φ10×10mm

Max Φ70×70mm
Min Φ20×20mm

Max Φ100×100mm
Min Φ20×20mm

Rectangle pipe

Max Φ30×40mm
Min Φ10×10mm

Max Φ30×60mm
Min Φ10×10mm

Max Φ50×90mm, 40×100mm, 30×110mm,
Min Φ20×20mm

Max Φ110×90mm,Φ80×120mm.Φ70×130mm.
Min Φ20×20mm
